infinity hub drive E-Mountain Bike


Enjoy the freedom

With our Infinity e-mountain bike, we have chosen a concept of high spec components on an easy to ride frame and motor combination. This bike is perfect for all off-road tracks up to grade 3. Easy to change Shimano gears and the powerful rear hub motor with torque sensor provide a smooth and natural riding experience. If you get tired you may even use the thumb throttle to keep you going.

Are you up for some speed as well? While most e-mountain bikes are limited to 32 kph we have boosted the infinity to 40 kph. So why not taking the infinity also for your daily trip into the office?

With big 180mm rotors and hydraulic brakes even longer downhill rides won't get you in troubles and the adjustable air suspension fork will keep your front wheel on the track. A well readable display shows all necessary information, controlled by left hand mounted buttons. Grippy pedals, a solid side stand and optional accessories like a carrier and mudguards make this bike your perfect choice for long off-road trips, i.e. the Alps 2 Ocean track.

We should also mention that all cables are running through the frame, so no damages can happen when transporting the bike on a normal bike rack.

Not convinced of the hub-drive version? Then have a look at our mid-drive model!

SPECIFICATIONS
All specifications are valid for our new May 2022 models
RRP $3390 (470Wh battery)
New price, valid from 19 Sep 2022

Battery options: 13Ah (470Wh), 16Ah (576 Wh), 19Ah (684 Wh) or 24Ah (862 Wh), high quality Samsung or Panasonic cells. Easy to remove, frame locked. Average charging time (13Ah): 4 hrs when empty

Motor: BAFANG 300 W brush less, geared 5:1

Controller: high efficient MOS-FET controller, max. 17A. Drive modes: torque sensor, throttle, manual

Speed: up to 40 kph on motor, maximum allowed speed can be changed by customer

Display: Easy to understand, left side mounted colour TFT Display with battery gauge and 5 level torque assistance control

Brakes: Front and Rear - Shimano BR-MT420 hydraulic brakes, 180mm rotors

Range: on assistance level 1 up to 80 km (13Ah), depending on terrain and weather condition. 16Ah range: max. 95km, 20Ah range: max. 120 km

Gears: Front - fixed Prowheel alloy crank with 38 teeth, Rear - Shimano Deore 10 speed (11-42T)

Frame: Alloy 6061, hydroformed, rated load: up to 120kg.

Fork: High end RockShox Judy Gold RL Fork, air suspension, 120mm travel, lock out and rebound, tappered headset tube

Wheels: 27.5"+ double wall 35mm alloy rim, heavy duty stainless steel 2mm spokes, 27.5"+ MAXXIS Reckon 2.6"

Handlebar: Promax 700mm, with adjustable stem, ergonomic Velo grips with hand rest.

Seat: VELO comfort sport seat

Weight: 23 kg incl. battery (13Ah)

Warranty: Comprehensive 2 years warranty on all part, 6 years on frame (wear and tear excluded)

Frame sizes: 17" (S-M) - for riders from 158-176cm, 20" (L-XL) for riders from 170-195 cm

Riding modes: zero support: just use it as normal push bike, torque sensor assistance: this sensor is integrated into the crank (bottom bracket) and measures how much the rider pushes into the pedals. The more you push the more power the motor puts out. Throttle: left hand mounted thumb throttle for extra support.

Optional accessories: Alloy carrier, mudguards, rechargable Hi-Power front and rear LED lights, 12V car and motorhome charger, batteries upgrade options: 16Ah (+$240), 19Ah (+$480), 24Ah (+$720)

New colour options



Blue metallic and copper metallic

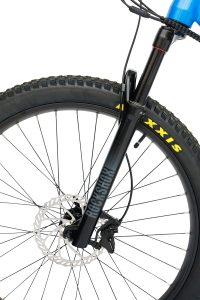

Rockshox Judy Air Fork

high end air fork to keep your wheels on track

This fork features a 120mm travel with a full air suspension (no springs!). Highly tunable Solo Air™ air spring: On the left side the rider can adjust the pre-load by pumping the cartridge to the desired pressure while the right side cartridge offers a compression wheel and rebound adjustment valve. With these adjustment options the rider is able to get exactly the right suspension behaviour for the typical tracks he or she is riding. For best comfort and safety. (Note: picture does not show the correct fork yet)

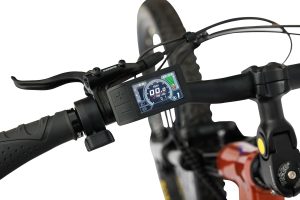

Big and easy to read display

A full colour TFT display shows the rider all necessary information about battery status, speed and traveled distance. Big button allow an easy change of support. With haptic feedback, so the rider can actually feel any changes without looking.

Shimano Deore Gears

smooth shifting - wide range - with gear change sensor

With a wide range from 11 to 42 teeth on the rear cassette and the solid Shimano Deore derailleur changing gears on the infinity is easy-as. No rattles - no delays. A gear change sensor takes the load from the motor while shifting. This helps reducing wear and tear on the cluster.

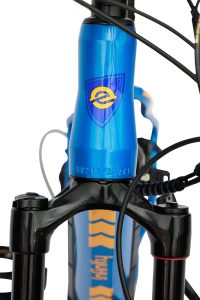

Tapered Headset

With a tapered headset you can be sure that your fork gets the best support when riding over bumpy ground. The bigger lower bearing is capable to take much more force than the standard bearings. This gives better stiffness and less wear and tear.

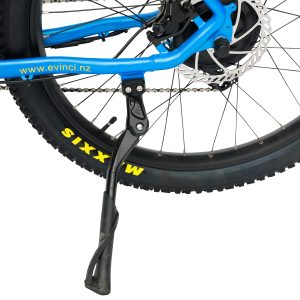

Keep standing

Out of the way stand

While most traditional MTBs do not come with a stand - ours does. We think it's not a good option to lay your precious bike into the dirt. Especially when you have bags on the carrier. The stand is mounted at a position where it will support the rear weight and at the same time it is not in the way when you want to move your bike backwards.

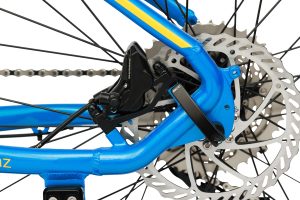

Hydraulic Brakes

The Shimano hydraulic brake system provides consistent brake force even at higher speed. It runs more stable and quieter than the cheaper entry-level systems.
