infinity mid-drive Electric Mountain Bike


Enjoy the freedom - power at your feet

With our Infinity mid-drive electric mountain bike, we have chosen a concept of high spec components on an easy to ride frame and motor combination. This bike is perfect for all off-road tracks up to grade 4.

Easy to change Shimano gears and a powerful mid-drive motor with torque sensor provide a smooth and natural riding experience. We have added also a shift sensor in this electric mountain bike to take off the load while changing gears. This reduces the stress on the drive train, especially when going up steep sections.

With big 180mm rotors and dual-piston hydraulic brakes even longer downhill rides won't get you into troubles and the adjustable air suspension fork will keep your front wheel on the track. A well readable display shows all necessary information, controlled by left hand mounted buttons. Grippy pedals, a solid side stand and optional accessories like a carrier and mudguards make this bike your perfect choice for long off-road trips, i.e. the Alps 2 Ocean track.

We should also mention that all cables are running through the frame, so no damages can happen when transporting the bike on a normal bike rack.

SPECIFICATIONS
$3,790
$3,290
on special - $500 off

Battery options: 13Ah (470Wh), 16Ah (576 Wh), 19Ah (684 Wh) or 24Ah (862 Wh), high quality Samsung or Panasonic cells. Easy to remove, frame locked. Average charging time (13Ah): 4 hrs when empty

Motor: DAPU 300W brush less, 85NM

Controller: Integrated high efficient MOS-FET controller, max. 17A. Drive mode: torque sensor

Speed: up to 35 kph on motor, maximum allowed speed can be changed by customer

Display: Easy to understand, centre mounted LCD Display with battery gauge and 5 level torque assistance control

Brakes: Front and Rear - Shimano BR-MT420 hydraulic brakes, dual-piston system, 180mm rotors

Range: on assistance level 1 up to 80 km (13Ah), depending on terrain and weather condition. 16Ah range: max. 100km, 20Ah range: max. 130 km

Gears: Front - fixed Prowheel alloy crank with 36 teeth, Rear - Shimano Deore 10 speed (11-42T)

Frame: Alloy 6061, hydroformed, rated load: up to 120kg.

Fork: High end RockShox Judy Gold RL Fork, air suspension, 120mm travel, lock out and rebound, tappered headset tube

Wheels: 27.5"+ double wall 35mm alloy rim, heavy duty stainless steel 2mm spokes, 27.5"+ MAXXIS Reckon 2.6"

Handlebar: Promax 700mm, with adjustable stem, ergonomic Velo grips with hand rest.

Seat: VELO comfort sport seat

Weight: 23 kg incl. battery (13Ah)

Warranty: Comprehensive 2 years warranty on all part, 6 years on frame (wear and tear excluded)

Frame sizes: 17" (S-M) - for riders from 158-176cm, 20" (L-XL) for riders from 170-195 cm

Riding modes: zero support: just use it as normal push bike, torque sensor assistance: this sensor is integrated into the motor and measures how much the rider pushes into the pedals. The more you push the more power the motor puts out.

Optional accessories: Alloy carrier, mudguards, rechargable Hi-Power front and rear LED lights, 12V car and motorhome charger, batteries upgrade options: 16Ah (+$240), 19Ah (+$480), 24Ah (+$720)

New colour options

Blue metallic and copper metallic

RockShox Judy Air Fork

This fork features a 120mm travel with a full air suspension (no springs!). Highly tunable Solo Air™ air spring: On the left side the rider can adjust the pre-load by pumping the cartridge to the desired pressure while the right side cartridge offers a compression wheel and rebound adjustment valve. With these adjustment options the rider is able to get exactly the right suspension behaviour for the typical tracks he or she is riding. For best comfort and safety.

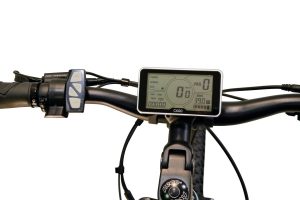

Big and easy to read display

The big 3.5" LCD display gives the rider all information they need. Battery level, power settings and two trip counters. All controls are easily reachable at the left side of the handlebar. The display is water proof and thanks to an aluminum frame it is very sturdy.

Shimano Deore Gears

Changing gears on the Infinity is easy-as. With a wide range from 11 to 36 teeth on the rear cassette and the solid Shimano Deore M4000 Shadow+ derailleur. No rattles - no delays.

Tapered Headset

With a tapered headset you can be sure that your fork gets the best support when riding over bumpy ground. The bigger lower bearing is capable to take much more force than the standard bearings. This gives better stiffness and less wear and tear.

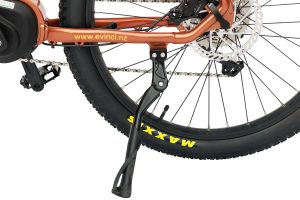

Keep standing

While most traditional MTBs do not come with a stand - ours does. We think it's not a good option to lay your precious bike into the dirt. Especially when you have bags on the carrier. The stand is mounted at a position where it will support the rear weight and at the same time it is not in the way when you want to move your bike backwards.

Hydraulic Brakes

The Shimano hydraulic brake system provides consistent brake force even at higher speed. It runs more stable and quieter than the cheaper entry-level systems.
