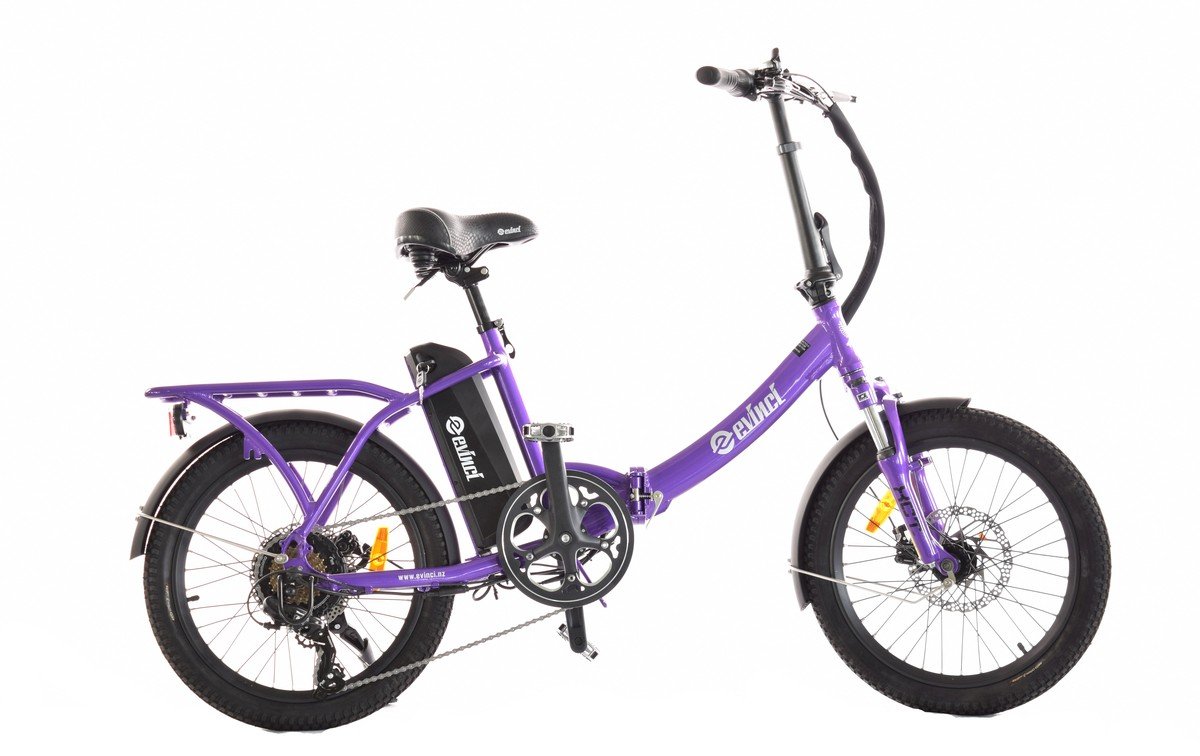

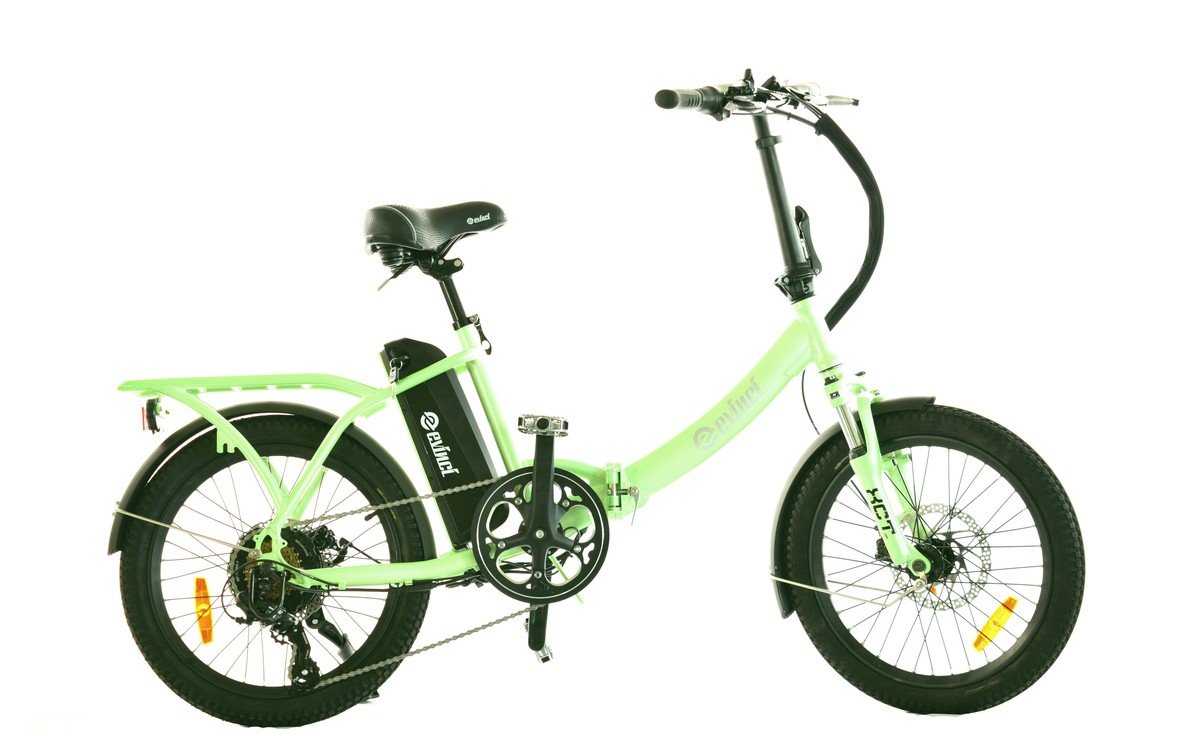

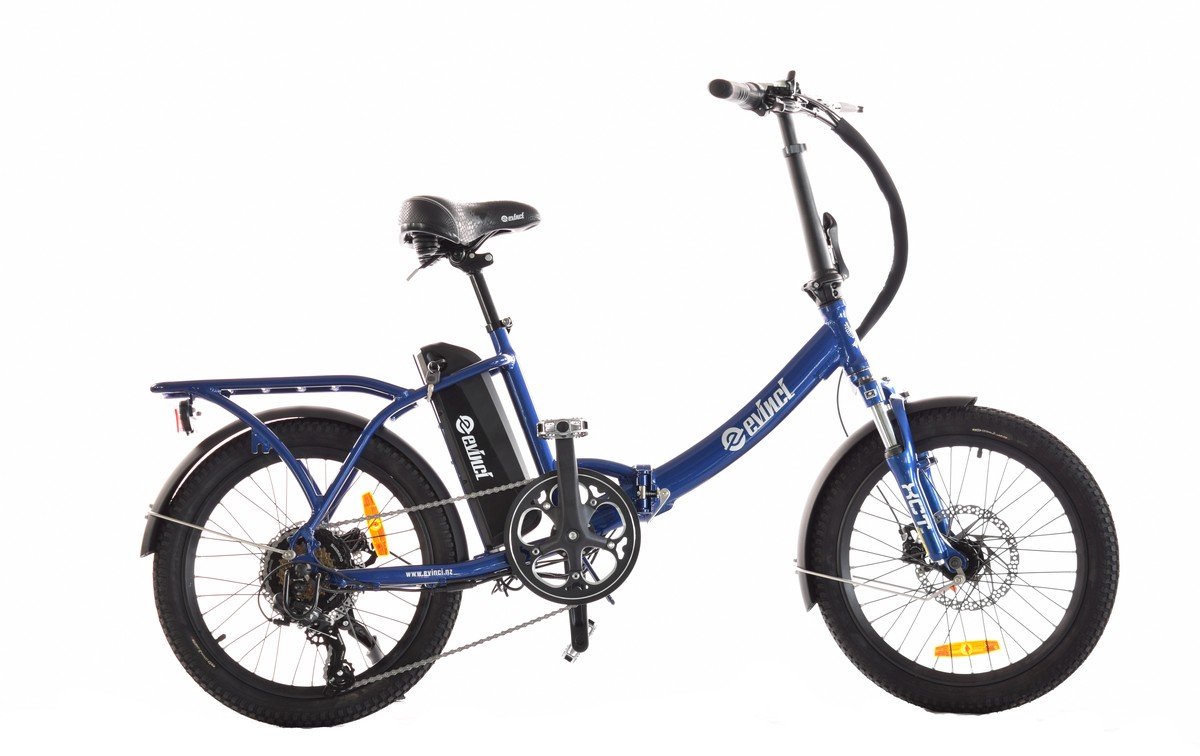

ROBIN Folding E-Bike


SPECIFICATIONS
from $2,095 (16Ah battery)

Battery: 16 Ah (576 Wh) or 20 Ah (720 Wh), high quality Panasonic and LG cells, mounted behind seat post for central weight distribution. 3.5kg (16Ah), easy to remove, frame locked. Charging time: 6 hrs when empty

Motor: 300 W brush less rear hub motor with internal 5:1 gear box. High torque for easy take-off, good heat distribution.

Controller: high efficient MOS-FET controller, max. 18A, up to 60V. Half throttle on right handle with PAS override. Drive modes: PAS only, Throttle only, mixed.

Speed: up to 35 kph on motor

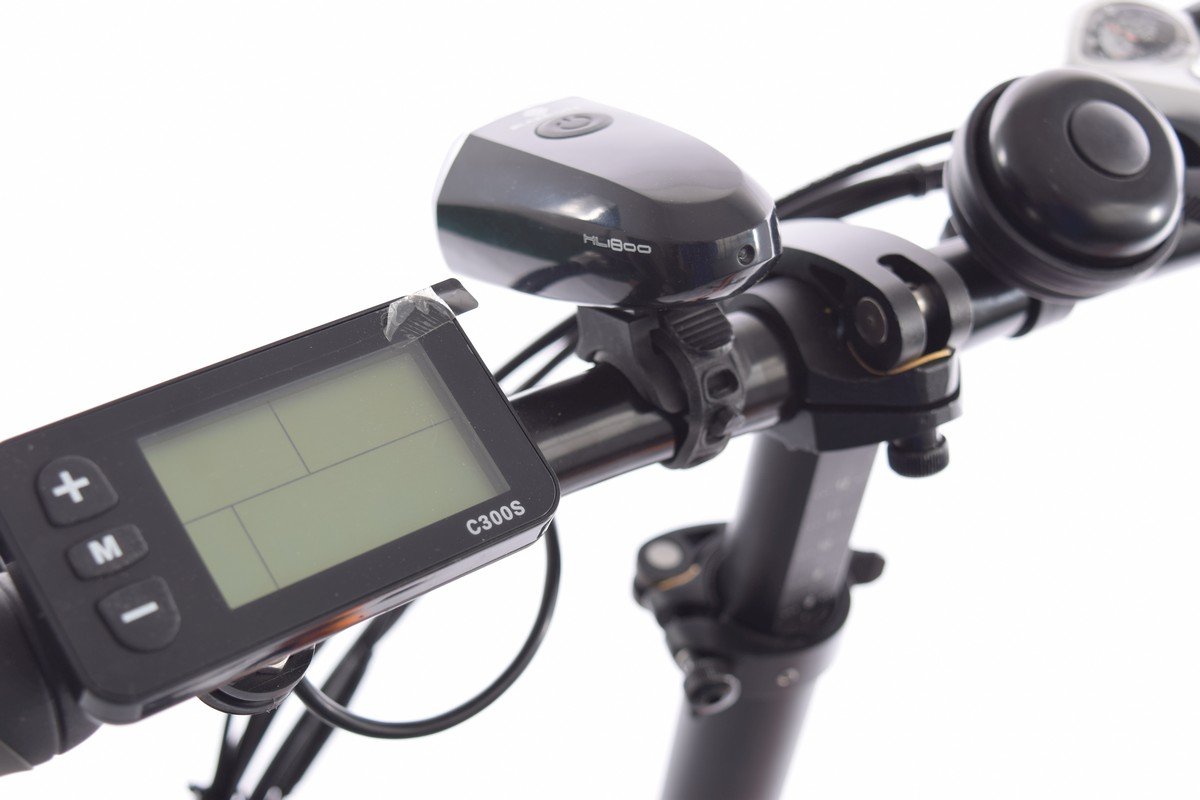

Display: Easy to read LCD Display with battery and power level. 5 level PAS control, 6 kph option, waterproof

Brakes: Front and rear - Shimano disc brakes, 180mm rotor. Both brakes with motor cut-out

Range: on PAS level 1 up to 70 km, depending on terrain and weather condition

Gears: Shimano Tourney 7-speed, 52 teeth front sprocket, 14-34 Shimano MEGA RANGE cassette, KMC EPT coated, rust-proof chain

Frame: Alloy 6061, hydroformed, rated load: up to 100kg. Frame size: 16", suitable for riders from 152 cm to 185 cm. All screws and washers stainless steel. Rear mounted side stand. Folds up in 20 sec. Folded size: 90x60x45 cm

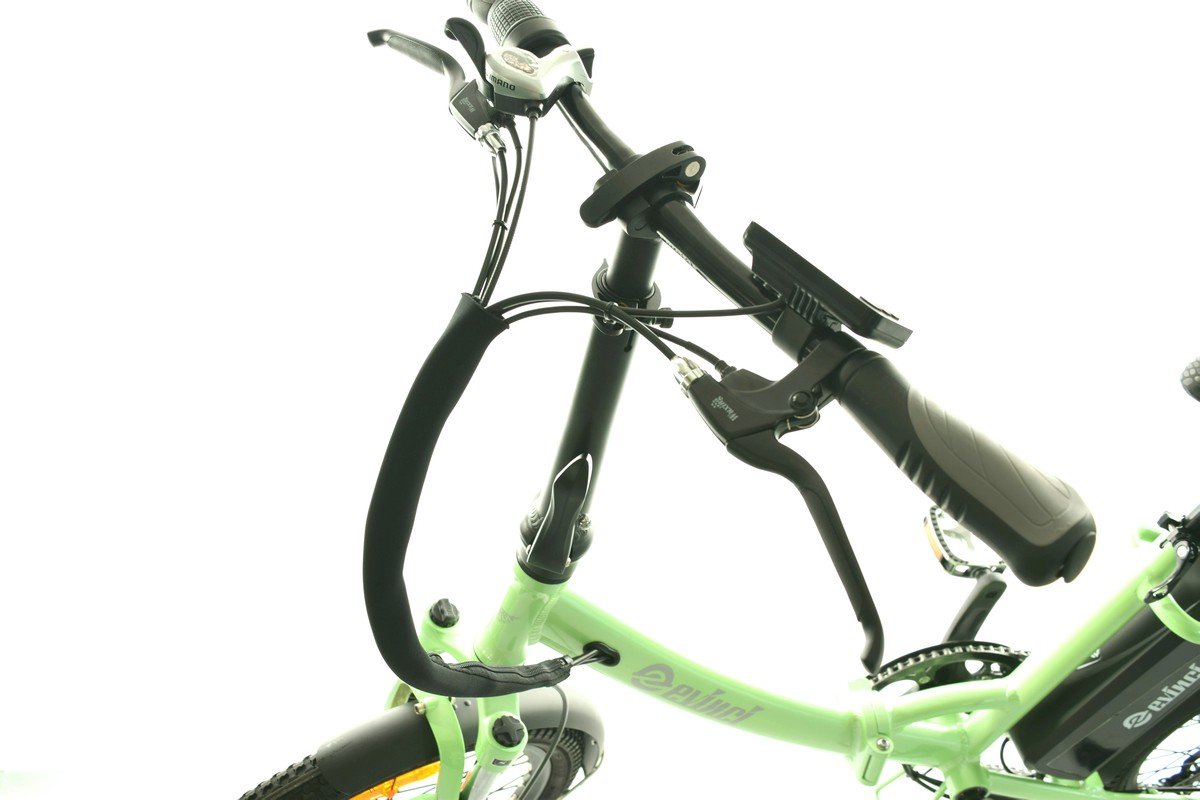

Steering: Threadless headset with height adjustable stem. Straight handlebar for upright riding position. Ergonomic grips with hand rest.

Fork: Suntour Spring Suspension fork

Wheels: 20" double wall alloy rim, stainless steel 13G spokes, CST 20x2.125 MTB style tires, suitable for rail trails and road. Heavy duty aluminium mudguards.

Seat: Evinci comfort seat with swivel function to remove battery

Weight: 24 kg incl. battery

Warranty: 2 years on battery and motor, 5 years on frame, 12 months on other parts

Included Accessories: 230V fast charger, LED front and rear lights, bell

Upgrade Options: front and carrier baskets, 20 Ah battery: +$250, Car and Motorhome direct charger, high power LED lights

Flying like a Robin

Our Robin folding e-bike has a unique frame - stretched and with integrated carrier. It rides very stable and can be also taken on all rail trails. Thick MTB style tires, a solid and quality front suspension, paired with a powerful motor makes it a pleasure to ride this bike.

It has a longer wheelbase compared to most other folding bikes - this gives this bike a superior stability on and off the road. Our improved sine-wave motor controller will ensure a soft, but still powerful motor operation, you will be astonished how powerful this little bike can boost you up a hill. The adjustable stem and seat post allows even taller riders to find a comfortable riding position. Our praised comfort seat adds to the positive riding experience. All wires and cables are protected and run in the down tube, this is important as cables can be easily damaged during transport.

Takes only few seconds to fold down and even fits in all small hatchbacks.

There is no other folding e-bike on the market with similar riding properties.

Colours*

sq_green sq_blue sq_red

* subject to availability

Frame Geometry
